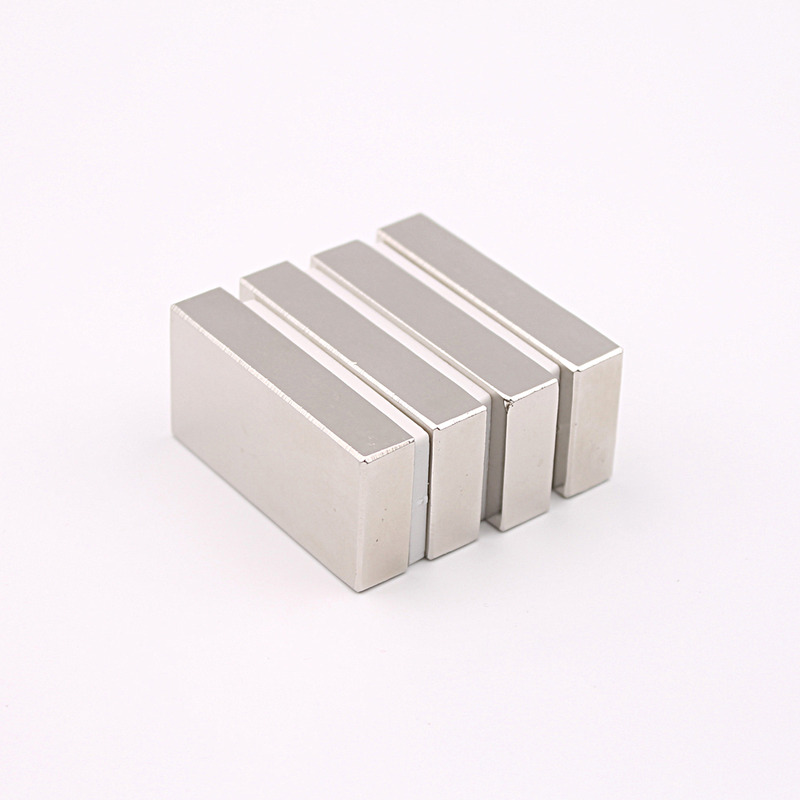

Ningbo Industrial Supplier Magnet Block Magnet Super Neodymium 50x25x10

50 Pieces
MOQ
Ningbo Industrial Supplier Magnet Block Magnet Super Neodymium 50x25x10
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: NDMAG-Magnet 50x25x10
Type: Permanent
Composite: NdFeB Magnet
Shape: Block
Application: Industrial Magnet
Tolerance: ±3%, 0.1 Mm
Processing Service: Bending, Welding, Moulding
Grade: Magnet Neodymium
Product Name: Ningbo Supplier Super Magnet Block Magnet Neodymium 50x25x10
Magnet Grade: N35 To N52
Coating: NiCuNi
Magnetism Direction: Thickness
Size: 50x25x10mm
Max Working Temperature: Max 80℃
Certification: ISO9001:2008
BH Max: 36 MGOe
MOQ: 20pcs
Basic Infomation
Certification: ISO9001:2008
Model Number: NDMAG-Magnet 50x25x10
Payment & Shipping Terms
Packaging Details: carton Professional packing for magnet delivery/shipping anti corrosion packaging with plastic anti broken packaging with steel sheet around the CTN, to do magnetism isolation as well
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Product Description

Basic Parameters

Production Name
Ningbo Supplier Super Magnet Block Magnet Neodymium 50x25x10
Magnet Dimension
50x25x10 mm
Custom Dimensions Available
Magnetized Direction
By thickness 10mm
Magnet Grade
N35
Max. Working Temperature
80℃
Coating
NiCuNi
Magnet Dimension
Custom dimension is available
Magnetized Direction
While ordering, please indicate magnetized direction

Magnet Grade
We can offer all NdFeB Magnet grades,
Example: N35,N42,N52, N45SH,N42UH...
If you are not sure which grade is proper, contact our engineer freely.

Temperature Resistance
Temperature is the first factor you have consider while choosing a magnet, please contact our engineer for details.

Coating
Other coatings availalbe
Example: NiCuNi, Zinc, Epoxy, Gold surface, ..

MOQ
No MOQ.
Free Samples are available.

Product Features

*Temperature Resistance – Temperature is the first factor you have consider while choosing a magnet, to make sure you choose a proper magnet, you can refer to this sheet or contact our engineer for details.

Magnet Series
Max. Working temperature
Magnet grade
N
≤80℃/176°F
N33,N35,N38,N40,N42,N45,N48,N50,N52,
M
≤100℃/212°F
N35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M
H
≤120℃/248°F
N35H,N38H,N40H,N42H,N45H,N48H,N50H
SH
≤150℃/302°F
N35SH,N38SH,N40SH,N42SH,N45SH,N48SH
UH
≤180℃/356°F
N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH,N45UH
EH
≤200℃/392°F
N28EH,N30EH,N33EH,N35EH,N38EH,N40EH,N42EH
AH
≤230℃/446°F
N28AH,N30AH,N33AH,N35AH,N38AH,N40AH

*Premium Quality Coating – This NdFeB Magnet are protected with a corrosion resistant NiCuNi coating to create a high quality silver look that doesn't rust or scratch. NiCuNi coating is one of the very popular surface treatment of NdFeB Magnets. Definitely other coatings are available at ND MAGS. Like NiCuNi,Epoxy, Zinc, Gold, Everlube

*Powerful Magnets - Made of Strongest NdFeb Materials, which is called " Magnet King", Strong Holding Power. If you need the small size magnet that has to produce strongest power, The NdFeB Magnets are probably your first choice. The following sheet is about all magnet grades we can offer to customers

Rating&Reviews

WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACK

Here is some of comments from our world-wide customers.
You can check all the comments at our company profile
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

Related Products
Workshop Viewing

Smelting Workshop

Name: Vacuum Stript Casting Furnace


The process is to mix all raw materials ( Rare earth, Iron...), and melt to pieces

Pressing and Orientation

Name: Magnetic pressing Machine
Process: Magnet pressing and Orientation

The magnetic powder is shaped and oriented at this process. The magntic direction is defined now. but now the magnet is without any magnetism.

Sintering Workshop

Name: Vacuum Sintering Furnace
Process: Sintering

After pressing, the density of the magnets are still very low. Thus sintering is essential to enhance the magnet density to the standards.

Electrical Plating Plant

Name: Auto Electrical Plating Line

When the magnet is sintered, the magnetic properties are fixed that we will inspect the properties. Then the magnets will sent to be machined into customized shapes. Finally all the magnets will be coated to avoid rusted. The poplular coatings are NiCuNi, Epoxy, Zinc ...
